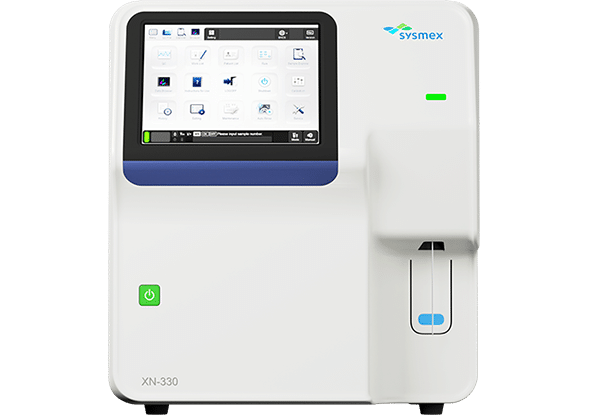

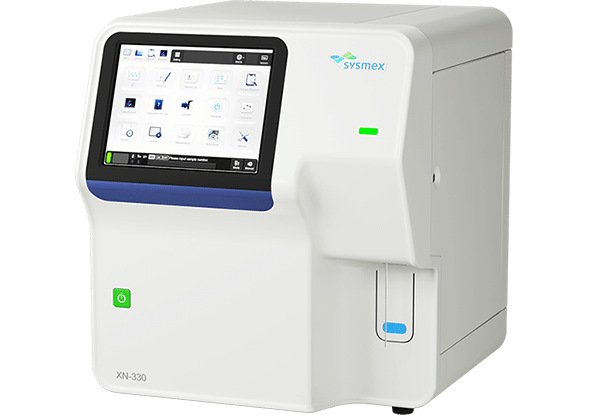

Sysmex XN-330

Automated Hematology Analyzer
XN-SeriesTM technology in a smaller footprint for the lower volume laboratory. Open tube sampling.
Principles andTechnology:
Fluorescent Flow Cytometry (WBC DIFF/RET), direct current Impedance method with hydrodynamic focusing (RBC/PLT), Cyanide-free SLS method (HGB)
Parameters:  WBC, RBC, HGB, HCT, MCV, MCH, MCHC, PLT, RDW-SD, RDW-CV, MPV,NEUT#, NEUT%; IG#, IG%; LYMPH#, LYMPH%; MONO#, MONO%; EO#, EO%; BASO#, BASO%
Throughput: Up to 60 samples/hour
Sample Volume Whole Blood Mode: 25 μL
Pre-dilute Mode: 70 μL
Linearity WBC: 0.00 – 440.00 X 103 /μL
RBC: 0.00 – 8.60 X 106/μL
PLT: 0 – 5,000 X 103/μL
Quality Control: XN-L CHECKTM or XN CHECKTM
Dimensions and Weight: 17.72" (W) X 18.11" (D) X 20.08" (H); 77.16 LBS
